OBDSTAR X300 DP Program VW Touareg 5th Immo All Keys Lost

In this article,China OBD2 engineer introduce How to program new key for VW Touareg 2011 5th Gen immo all key lost by OBDSTAR X300 DP and RFID VAG 4th & 5th immo programming adapter.

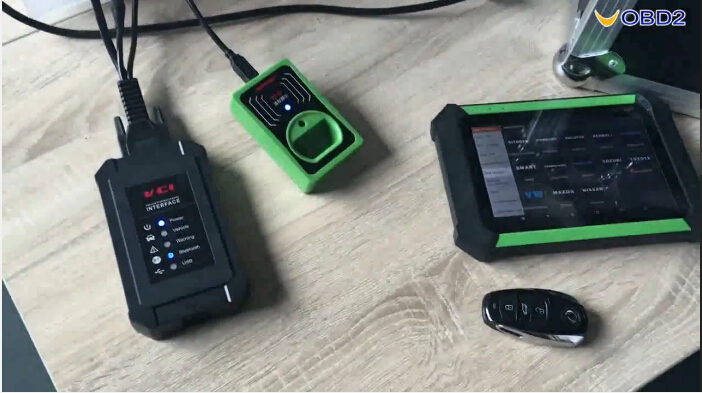

  Well connect OBDSTAR X300 DP and RFID adapter, VCI adapter with vehicle
Please connect VCI to main unit by USB to keep stability of vehicle communication

First update OBDSTAR RFID adapter to latest version. If X300 DP tablet shows the hardware has been the latest version.  Press OK to go back.

Select 5th immo New Touareg->Read Immo Data

Switch ignition on
If all key lost, please turn on the headlight and depress brake, then press (ENT) to continue
Reading immo data…
Save immo data as BIN format, e.g “KKKKKKKK.BIN”

Press OK to confirm
Select Show IMMO Data
Select bin file just saved
OBDSTAR X300 DP key programmer will display VIN, key number etc information

Select Make Dealer Key and bin file

Put a valid key into RFID and make sure the key is effective,  otherwise, the programmed key is unable to start the vehicle
Press YES to continue

 After insert first key, the RFID indicator will flash. Then insert second valid key
Written success

Select Program Keys and choose bin file

Note: After recognized by vehicle, the key will be locked and unable to unlock. Continue to go on?
Press YES to continue

Enter key number to be programmed: 2
Press OK
Please turn ignition on, Press ENT to continue
Press OK
Insert new key orderly and turn on ignition switch for smart system, aim backside of key to the key identification mark area and turn OFF->ON to recognize key

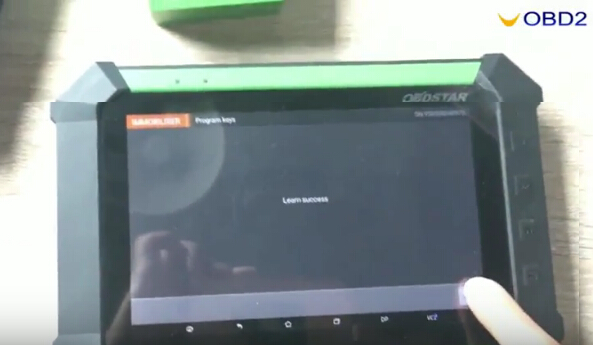

succeed to recognize key

key learning mode is ending

Test the key programed on vehicle.
