Tuesday, September 11, 2018

How to Use OBDSTAR X300 DP Plus Clone ECU for GM Opel Bosch BCM

This article show a guide on how to use OBDSTAR X300 DP Plus to clone GM Opel Bosch BCM.You can copy the original ECU data,and then write the data into another same ECU hardware via X300 DP Plus,so that it can achieve the same function as the original ECU.Let’s jump right in!

Procedure:
Select “ECU Clone”==>GM
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (1)
GM V30.01,and tap “OK”
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (2)
Select “Auto” and tap “OK”
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (3)

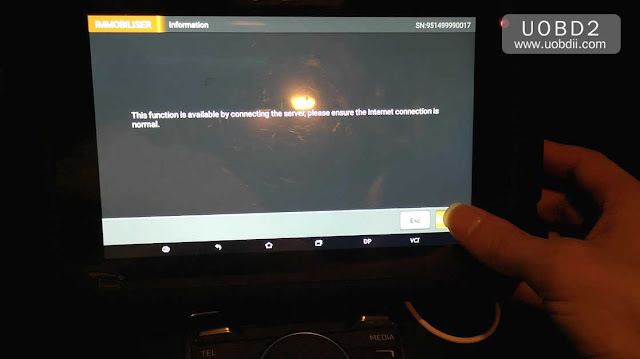

It prompt with the information “This function is available by connecting the server,please ensure the Internet connection is normal”
Tap “OK” to continue
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (4)
Select “Read EEPROM”,and click “OK”
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (5)
Enter a filename to save
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (6)
File saved success
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (7)
Select “Read FLASH”
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (8)
Enter a filename to save
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (9)
Click “Write EEPROM”
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (10)
Select the data file you saved before
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (11)
Logging system…
Restoring EEPROM…
Successful data recovery
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (12)
Select “Write FLASH”
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (13)
There are certain risks in operating this function.Does it continue?
Remember:During operation,make sure that the vehicle is fully powered and do not disconnect the device.Tap “OK” to continue
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (14)
Select the FLASH file you saved before,then tap “OK” to continue
OBDSTAR X300 DP Plus Clone GM Opel Bosch BCM (15)
Logging system…
Restoring FLASH…
Successful data recovery

Done!
Src:http://www.obdstartool.com/wholesale/obdstar-x300-pad2-full-version.html

Thursday, August 9, 2018

Different Between OBDSTAR H108 and F108?

Some customers sent email to ask me about different between OBDSTAR H108 and OBDSTAR F108,so here obdstar engineer give the comparison below:

OBDSTAR H108 is update version of OBDSTAR F108,it can do more PSA vehicle model and newest year models.
obdstar H108 and obdstar F108+ comparison table
 obdstar H108obdstar F108+
Imageobdstar-h108-psa-programmerobdstar-f108
Price$235 free shipping$135 free shipping
PEUGEOTYesYes
CITROENYesYes
DSYesYes
K-line old carsYesDoesn't work with the older cars especially the ones before 2008 year.
Canbus newer carsYesYes, some users tested it working with 2017 car models
OBD Key programmingYesYes
OBD Pin code readingYes,read Pin code when all keys lostYes
Cluster calibrationYes, much better than F108+Covers Less vehicles than H108
LanguageEnglishEnglish
UpdateOnline update via TF card for 1 year freeOnline update via TF card for 1 year free
Warranty1 year1 year

obdstar H108 wins obdstar F108+ in:
PSA Support ListAutomatic
Identification
Read
Pincode
Read
EEPROM
Write
EEPROM
Read
FLASH
Cluster Calibrate
SIEMENS D76F0018+95160 K LINE(BSI-E0X-00/BSI-F0X-00)×
SIEMENS 1L00M+95128-95256CAN(BSI-SOX-00)
CONTINENTAL SC667050+95256 CAN(BSI-Q0X-00)
JC easyCAN4+29LV400BB+95128 CAN (BSI2004-HOX)
JC easyCAN4F1M-32+95128 CAN (BSI04EV-K0X)
JC SPC560B60+95128 CAN (BSI04EV2-KEX)×
VALEO 2M48H+24C128 CAN (BSIEV-X0X-00)
VALEO 4L00M+95128-25128CAN(BSI2004-POX-00)
VALEO SC667152+95256 CAN (BSI-NOX)

Article from:http://blog.obdstartool.com

Tuesday, July 17, 2018

OBDSTAR X300 PAD2 Correct Odometer for Benz W169

Today Leo showed us how to use obdstar X300 DP Plus to program mileage on Benz A169, please note, what he used is a testing kit, in the real test, you need only use the OBDII cable to connect the machine and the OBD port of the Benz instead of dismantle the dashboard.

OBDSTAR X300 DP Plus
  1. Connection.
obdstar-x300-dp-plus-program-mileage-for-benz-a169-01 obdstar-x300-dp-plus-program-mileage-for-benz-a169-02

  1. Tap “Cluster calibration”.
obdstar-x300-dp-plus-program-mileage-for-benz-a169-03

  1. Tap “Benz”.
obdstar-x300-dp-plus-program-mileage-for-benz-a169-04 obdstar-x300-dp-plus-program-mileage-for-benz-a169-05

  1. Initial communication failed, please confirm that the diagnostic line is connected normally.
obdstar-x300-dp-plus-program-mileage-for-benz-a169-06 obdstar-x300-dp-plus-program-mileage-for-benz-a169-07

  1. Communicating successfully.
obdstar-x300-dp-plus-program-mileage-for-benz-a169-08
  1. Enter A series -> W169
obdstar-x300-dp-plus-program-mileage-for-benz-a169-09
  1. Switch ignition on.
obdstar-x300-dp-plus-program-mileage-for-benz-a169-10
  1. Reading mileage.
obdstar-x300-dp-plus-program-mileage-for-benz-a169-11
  1. Current mileage 8015KM.
obdstar-x300-dp-plus-program-mileage-for-benz-a169-12
  1. Please input the mileage of the adjustment.
obdstar-x300-dp-plus-program-mileage-for-benz-a169-13 obdstar-x300-dp-plus-program-mileage-for-benz-a169-14
  1. The dashboard will automatically turn off and on, means the machine is communicating with it.
obdstar-x300-dp-plus-program-mileage-for-benz-a169-15 obdstar-x300-dp-plus-program-mileage-for-benz-a169-16

Done in 3 minutes.

Monday, June 25, 2018

Newest OBDSTAR X300 DP Plus ECU Clone Function

Recently,OBDSTAR company have released their newest product called OBDSTAR X300 DP Plus(OBDSTAR X300 DP PAD2).It can clone ECU,so here i will introduce this function in detail.

OBDSTAR X300 Plus ECU Clone Function:

ECU Clone
1. ECU Clone, means ECU duplication.
The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.

2. Clone directly when replacing a new or a used ECU!
Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!

3. Three features for ECU Clone:
A. Free of 4S online:
break monopoly from 4S, benefiting automobile maintenance industry
B. Simplified operation procedures: realize foolproof operation
C. Non-dismantling with zero risks: read and write data without dismantling ECU

src:http://www.uobdii.com/wholesale/obdstar-x300-dp-pad2-key-master-plus-full-configuration.html

Tuesday, June 19, 2018

OBDSTAR F108 success on Citroen Aircross 2015

This is a review on OBDSTAR F108 key programmer running on Citroen aircross 2015.And the OBDSTAR H108 is the update version of OBDSTAR F108.

obdstar-f108-main-unit
This is OBDSTAR F108 package i got from obdstartool.com. Sorry for photos are not with high definition as you wish.

The package includes:
F108 main unit
TF card
All items were packed in a hard paper box, in a good condition… No damages.

I purchase this device because of the following reasons:
1) i have 2015 Citroen aircross needs adding new keys, and this is the only professional auto key programmer for Citroen (also, Peugeot and DS)
2) my wife drives 2009 Peugeot 508. F108 works for that also; maybe in the near future, it will…
3) The price point for F108 was just right. € 157 is ok price for me.
4) F108 can read PIN codes and program keys together. I don’t need to buy other new PIN code readers.
To begin with, I go through the basic functions. Below is the start-up screen as soon as the device is plugged into the OBDII port (The unit will power-up as soon as it’s plugged in).
obsdtar-f108-Citroen-2015-success-1 obsdtar-f108-Citroen-2015-success-2 obsdtar-f108-Citroen-2015-success-3
It gives options then:
FUNCTION
SETTING
ABOUT
SELFTEST
obsdtar-f108-Citroen-2015-success-4
IMMMOBILIZER
obsdtar-f108-Citroen-2015-success-4
Immo software v31.09
obsdtar-f108-Citroen-2015-success-6
Peugeot
Citroen
DS
obsdtar-f108-Citroen-2015-success-7

The device is easy to use (plug and play) and set-up is pretty self explanatory. i cycle through the scanner using the arrow buttons and enter/back buttons.

And managed to read Citroen aircross PIN code
obsdtar-f108-Citroen-2015-success-8
All done with the help of the screen instruction – very detailed.
Sp, if you’re a home mechanic, it’s is seriously worth of your purchase, like me. Just need access to your car (Peugeot, Citroen, DS). It’s straight forward and easy to operate, accessing cars and reading security codes and programming new keys quickly.
The instructions are clear to follow with pictures for every step. Updating the software is easy too, especially if using a laptop with an SD card reader as you plug the tool’s card into your computer, run the software, update, unplug and go.

It’s a happy shopping in China; but i think it would be better if OBDSTAR F108 Programmer has the option of the French language.

Thursday, June 7, 2018

New Mondeo Mileage Adjustment by OBDSTAR 300M Notice

There are three types of instruments for New Mondeo: big screen, small screen, dual screen. OBDSTAR X300M Odometer Corrector is currently supporting calibration big screen and small screen, if you enter the wrong type,the instrument will be black, after power on, then it  can be restored again.

Big Screen of New Mondeo—Supported by OBDSTAR X300M
big-screen-of-mondeo

Small Screen of New Mondeo—Supported by OBDSTAR X300M
small-screen-of-mondeo

Dual Screen of New Mondeo—Not Supported by OBDSTAR X300M, Factory Still Developing!!!

dual-screen-of-new-mondeo

Tuesday, May 29, 2018

OBDSTAR H108 to Calibrate Citroen Cluster via OBD

Used OBDSTAR H108 to do Citroen cluster calibration via OBD perfectly and easily, what I need to do is do what the screen display tells me to do.
 OBDSTAR X300M Mileage Programmer
Plug OBDSTAR H108 to the Citroen BSI. OBDSTAR
obdstar-h108-citroen-cluster-calibration-01
Select"Cluster Calibrate".
obdstar-h108-citroen-cluster-calibration-02
Citroen
obdstar-h108-citroen-cluster-calibration-03 obdstar-h108-citroen-cluster-calibration-03 obdstar-h108-citroen-cluster-calibration-05
Select "BSI".
obdstar-h108-citroen-cluster-calibration-06
Auto select
obdstar-h108-citroen-cluster-calibration-07
If auto select failed, select "manual select".
obdstar-h108-citroen-cluster-calibration-08
Select "JC BSIO4EV-KOX".
obdstar-h108-citroen-cluster-calibration-09
Switch ignition on
obdstar-h108-citroen-cluster-calibration-10
Select "Read EEPROM".
obdstar-h108-citroen-cluster-calibration-11 obdstar-h108-citroen-cluster-calibration-12 obdstar-h108-citroen-cluster-calibration-13
Please enter a filename to save, press the "ENT" button.
obdstar-h108-citroen-cluster-calibration-14
Operation success
obdstar-h108-citroen-cluster-calibration-15
Press the "ENT".
obdstar-h108-citroen-cluster-calibration-16
Read Flash...
obdstar-h108-citroen-cluster-calibration-17
Press the "ENT" button.
obdstar-h108-citroen-cluster-calibration-17
Read Flash success.
obdstar-h108-citroen-cluster-calibration-19
Press "ENT".
obdstar-h108-citroen-cluster-calibration-20
Press "ENT".
obdstar-h108-citroen-cluster-calibration-21
Press "ENT".
obdstar-h108-citroen-cluster-calibration-22
Input a new value.
obdstar-h108-citroen-cluster-calibration-23 obdstar-h108-citroen-cluster-calibration-24
Success.
obdstar-h108-citroen-cluster-calibration-25 obdstar-h108-citroen-cluster-calibration-26
Done.
Perfectly, I am very happy with this OBDSTAR H108, it doesn't let me down. I highly recommend it.
